Name: Kidde KE-DM3110R-KIT Excellence Series Intelligent Addressable Manual Call Point with Isolator and Back Box, Red
Brand: Kidde
SKU: KE-DM3110R-KIT

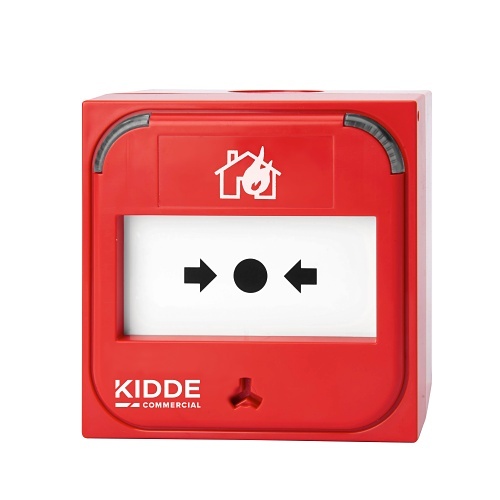

Kidde KE-DM3110R-KIT Excellence Series Intelligent Addressable Manual Call Point with Isolator and Back Box, Red

Brand: Kidde

ADI #:KE-DM3110R-KIT Model #: KE-DM3110R-KIT Name: Kidde KE-DM3110R-KIT Excellence Series Intelligent Addressable Manual Call Point with Isolator and Back Box, Red

Reliable single action manual call point for surface mounting
Integrated short circuit isolation for added safety
Dual, tri-colour status indicators offers 180° alarm visibility

Produktöversikt

General Information

The KE-DM3100 Series is an intelligent range of addressable, Excellence Series manual call points with integrated isolation. The KE-DM3110R-KIT is a red, single action indoor MCP with a House-on-Fire functional indicator. It is delivered complete with back box, resettable element, test connector and test key. Multiple optional accessories are available to facilitate most indoor installation requirements. This single action MCP is a standard profile, indoor MCP suitable for surface and recess mount installations using standard or legacy European electrical boxes. With its designer dual, tricolour LEDs it offers 180°, clear local indication of its operational status, even from a side view in a passage installation. The clean face of the MCP is further enhanced by a front access and test key facility that allows access to the back box and cabling, making additional fasting screw holes obsolete. The front facing access for an aesthetically matching test key allows unhindered access regardless of the installation location. The MCP key doubles as a test and disassembly tool allowing removal of the MCP front cover without the need for additional tools. The KE-DM3000 range may be used on all Kidde Excellence Series fire systems, and are also compatible with legacy Aritech fire systems. They can in many cases be deployed into existing systems without CIE configuration changes.

Huvudsakliga egenskaper

Reliable single action manual call point for surface mounting
Integrated short circuit isolation for added safety
Dual, tri-colour status indicators offers 180° alarm visibility
Tamper resistant design with resettable or frangible element
Unobtrusive front facing test facility
Standard mounting options facilitates easy retrofitting to existing installations
Back box with rear, top and bottom cable entry
Screen connection terminal in the back box for electrically noisy installations
Pluggable connector with link through facility for ease of installation and pre-commissioning testing
An alarm flag on the face of the manual call point allows alarm indication even without alarm LEDs
